Intercept, process, and enhance your FFB signal through a 15-stage DSP pipeline before it reaches your wheel. Now with full multi-game support for AC EVO, RaceRoom, Assetto Corsa, and Le Mans Ultimate.
The latest updates and features added to AC EVO FFB Tuner.
Smart AI assistant for FFB tuning with live telemetry analysis, chat interface, and pending changes UI. Monitors your driving, suggests adjustments, and explains the reasoning behind each recommendation.
Native CAMMUS C5 wheel support via HID protocol with CustomForce fallback when ConstantForce is unsupported. Full FFB effect creation with steering angle snap detection.
Full LMU shared memory reader with 20+ extended telemetry fields. Dedicated LMU FFB pipeline integrated alongside EVO, RaceRoom, and Assetto Corsa.
New Overlays management page for Race Info, Telemetry, and other screen overlays. Runtime game detection auto-switches pipelines. Discord Rich Presence and OBS overlay support.
OSM relation parsing with tiered data provider for comprehensive track data. New Live Track Map page with real-time car position, corner detection, and sector analysis.
Refactored to 4 steps with user-guided polarity detection and intensity preference. Braking pull detection, LMU support, and voice announcements with Google TTS voice pack.
RaceRoom pipeline rewritten as fully standalone. Assetto Corsa (original) gets dedicated shared memory reader and FFB pipeline. FFB Effects page with game-specific section visibility.
Pit speed limiter LED flash with persistence latch. HF8 motor copy/paste with new R3E data sources. Profile save/load now uses profile as single source of truth.
Your wheel is capable of far more than the game sends it. AC EVO FFB Tuner unlocks that potential with a professional-grade signal processing pipeline and multi-game support.
Auto-gain, channel mixing, compression, LUT curves, slip enhancement, damping, dynamic effects, tyre flex, stationary friction, EQ, vibration, LFE rumble, and more — every signal is precision-shaped.
Like an audio EQ for your wheel. Shape forces from 2 Hz steer weight all the way to 100 Hz ABS pulses. Boost road texture, tame kerb strikes — your call.
Isolated FFB pipelines for AC EVO, RaceRoom, and Assetto Corsa. Each with its own shared memory reader, pipeline subclass, and haptic synthesis path — tune one without affecting another.

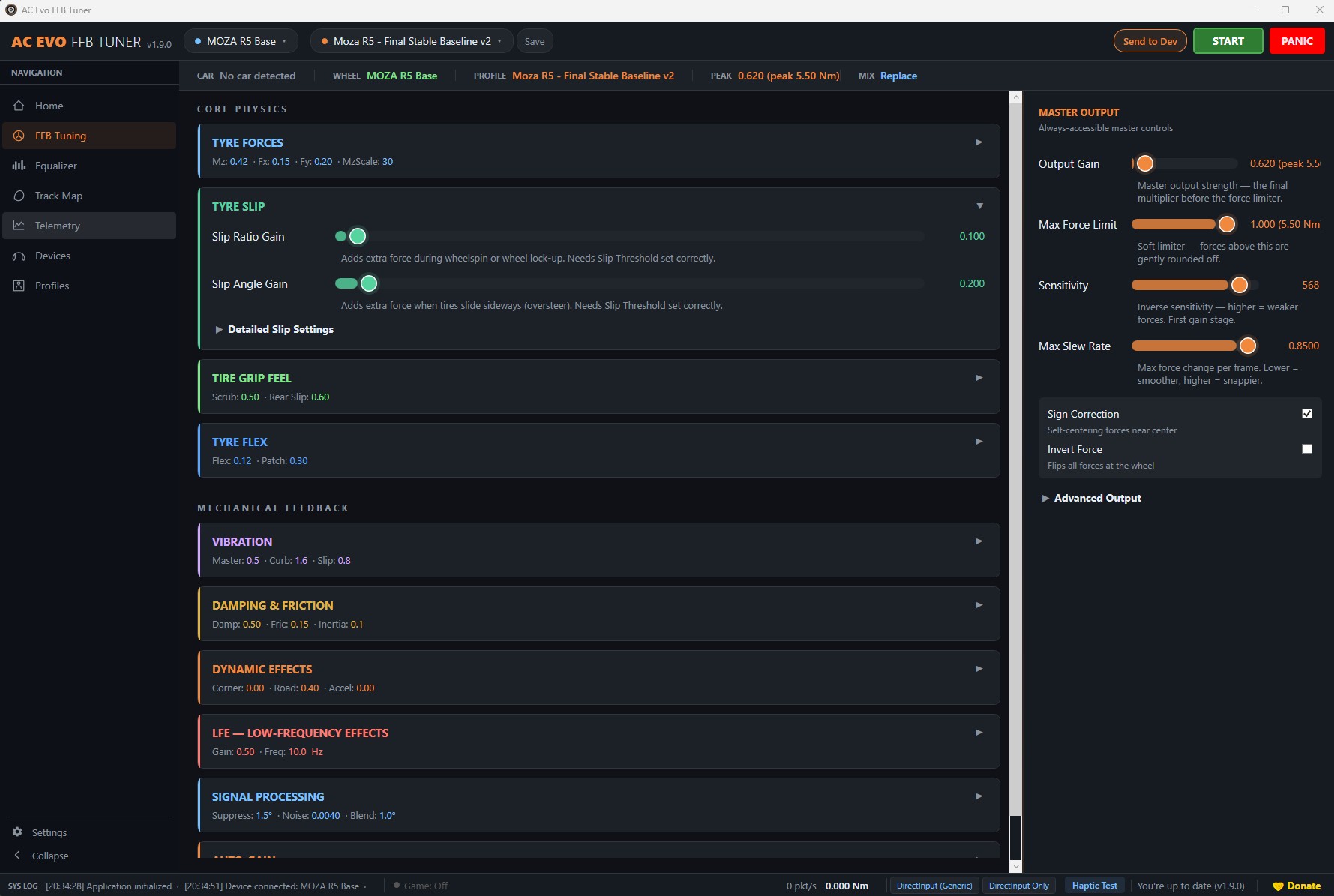

Every stage is independently tunable. Your physics signal travels through each one in sequence before reaching your wheel. Game-specific overrides add extra stages per-title.
Car-specific FFB multiplier compensation so every car feels consistent.
Blend Mz, Fx, Fy tire forces (front + rear) with wheel-load weighting.
tanh-based dynamic range compression preserves detail while preventing clipping.
Linear, Soft Center, Progressive, and Dead Zone presets.
Wheelspin and oversteer amplification to feel tire slip before it becomes a problem.
Coulomb friction model with angular acceleration inertia for realistic resistance.
Cornering, suspension, G-force, and yaw rate forces layered into your signal.
Carcass deformation and contact patch dynamics from shared memory telemetry.
Elastic displacement friction for tyre scrub when stopped. Grip Guard prevents pull-away forces on grip loss.
Physics-preserving fade prevents zero-crossing notchiness while preserving Mz curve.
Gradual force reduction below 5 km/h for parking and pit stops.
Speed-scaled max force change per tick eliminates snap-oversteer spikes.
Parametric biquad EQ from 2 Hz to 100 Hz — shape every frequency independently.
Curb, slip, road, ABS, tire scrub, and rear slip warning vibrations mixed in.
Suspension travel and RPM-driven low-frequency effects for immersive bass rumble.
Select your game from a dropdown — the app automatically switches to the correct shared memory reader, FFB pipeline, and haptic synthesis path. Each game pipeline is completely isolated.
Full 15-stage DSP pipeline with real AC EVO physics telemetry. 333 Hz input, all vibration effects driven by actual game physics. Wet weather FFB processing with tyre compound classification.
Dedicated R3E pipeline with brake weight-transfer boost, DC blocker, dynamic suppression, and V-shape centre suppression. Adaptive gear shift filter and grip-loss feel for understeer detection.
AC-specific pipeline with custom mixer scales tuned for synthesized force data. Gear shift filter, configurable brake boost, and simplified pipeline for AC lower-fidelity telemetry.
Dedicated LMU FFB pipeline with 20+ extended telemetry fields from shared memory. Player telemetry offset via header playerIdx (not scoring index). Full wheel array with suspension, forces, tire data.

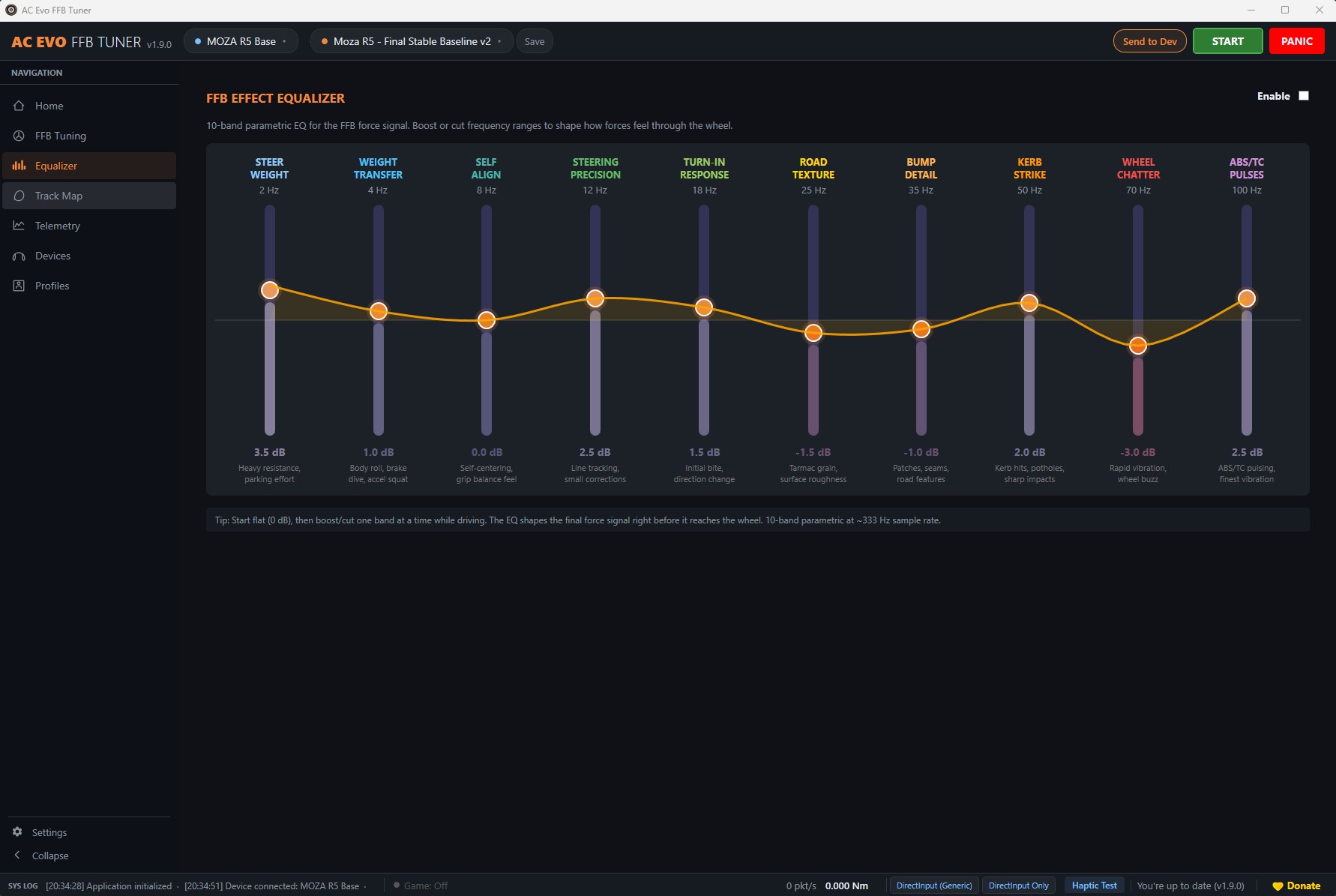

Think of it as an audio equalizer for your steering wheel. Boost the frequencies you want to feel more, cut the ones you do not. Each band supports -12 dB to +12 dB gain with dynamic heat-map colors.
Additional tools and features that make AC EVO FFB Tuner a complete sim racing force feedback solution.
Real-time FFB correction monitoring average force, peak force, snap events, clipping, oscillation, and jitter. Tick-level and lap-level corrections with cooldown system.
Mapsui-based ESRI tile overlay with auto-alignment, calibration mode (drag/rotate), zoom-to-cursor, and GPS for 25+ tracks. Popout overlay for second-screen use.

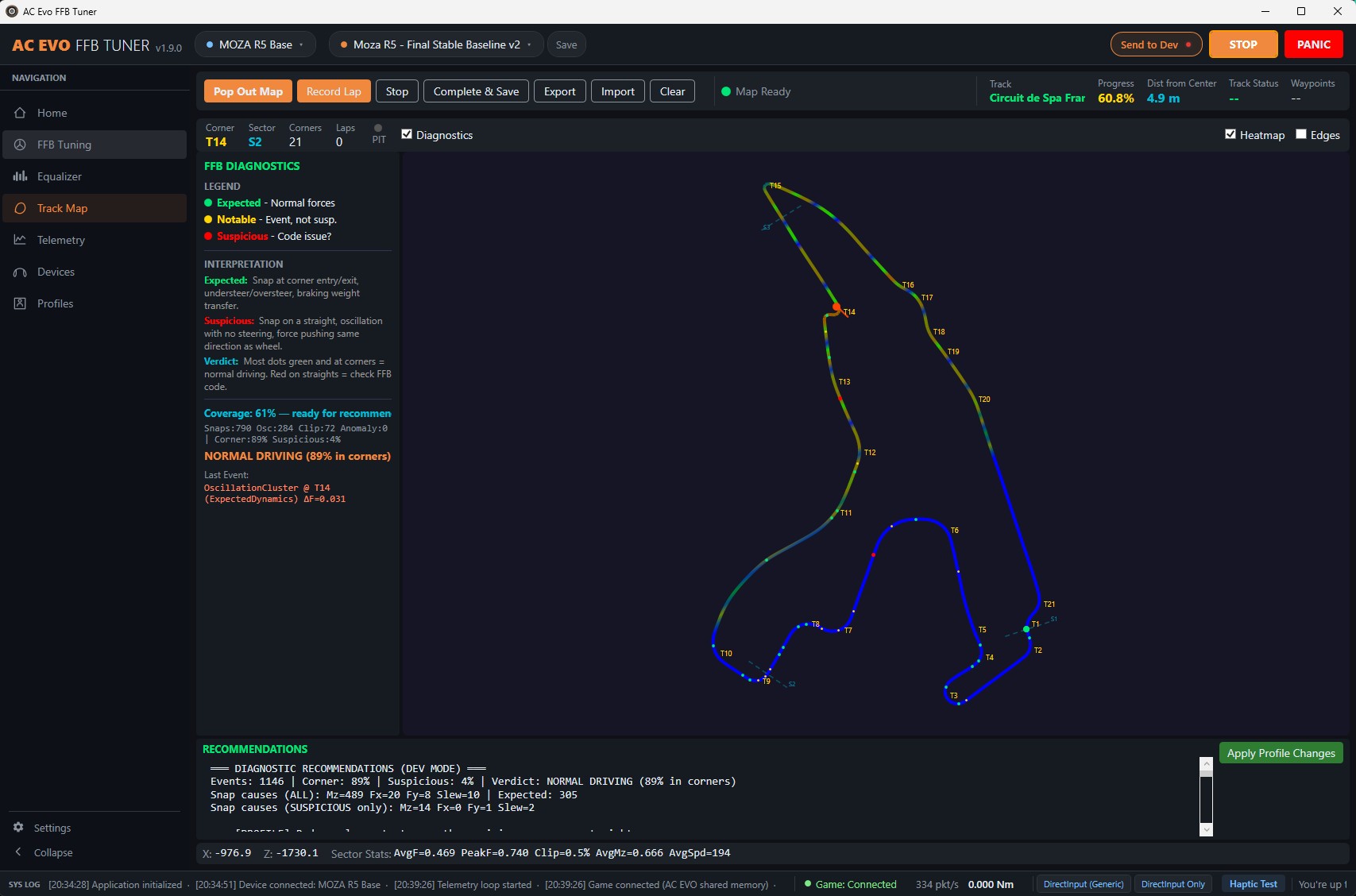

Records track layout from car position. Auto-detects corners and sectors. Force heatmap overlays for snap events, oscillations, and clipping. One-click tuning recommendations.
Direct ButtKicker HF8 integration via ForceFeel SDK. 8 motor zones, 5 telemetry sources, per-zone source weights, individual gain/enable, master gain, motor test popup.
FFmpeg D3D11 hardware capture, auto-start/stop with speed threshold, WASAPI audio loopback, cloud upload for sharing recordings with the developer.

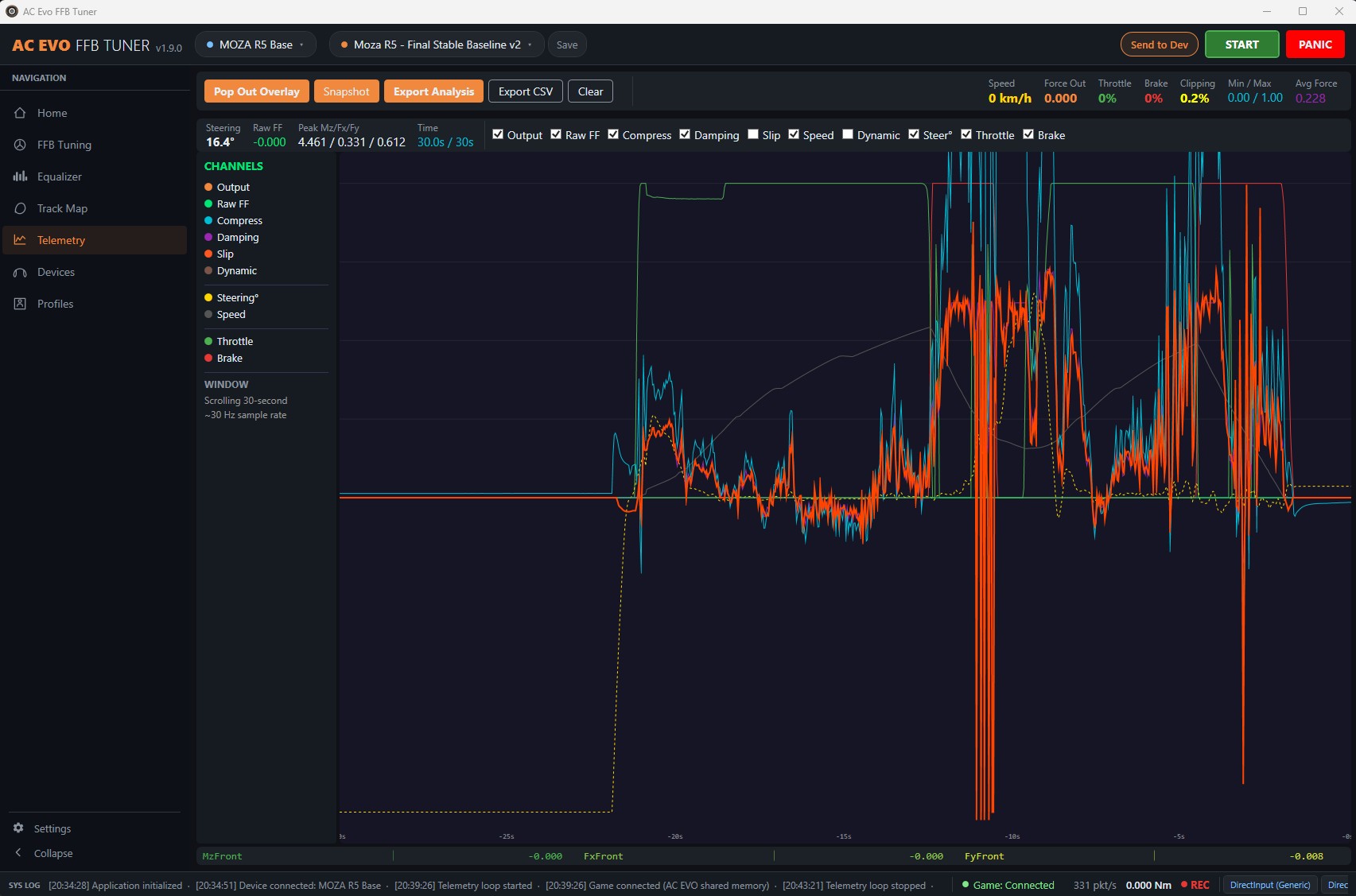

Real-time scrolling graph of all pipeline stages. Snapshot capture with CSV export and animated HTML replay visualizer.
Auto-detects wheel type (DD, Belt, Gear) and torque from device name. Generates baseline profiles tuned for your specific wheel.

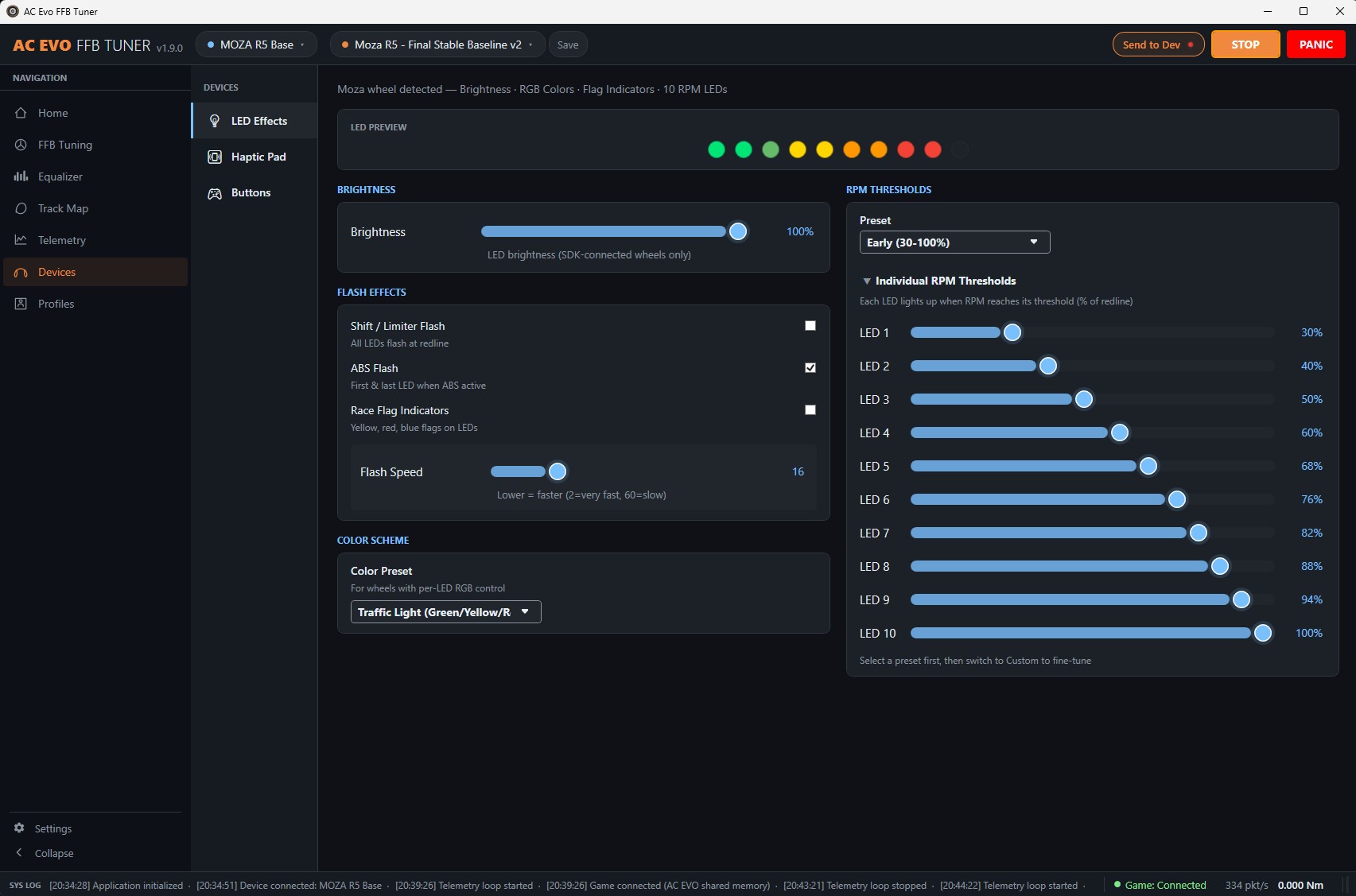

RPM shift lights, ABS flash, and race flag indicators. Supports Moza, Fanatec, Logitech, and Simucube with configurable brightness and color schemes.
AI-powered FFB tuning assistant with live telemetry analysis. Chat interface provides real-time suggestions, explains pipeline behavior, and manages pending changes. Scope-bound prompts prevent off-topic questions.
Manage Race Info, Telemetry, and other screen overlays from a dedicated page. Runtime game detection auto-switches pipelines. Discord Rich Presence and OBS streaming overlay support.
JSON-based profiles for all settings. Sidebar browser with track/car grouping. Save, rename, export, import. 7+ pre-configured baselines included.
Features currently in development. Priorities shift based on community feedback — join our Discord to influence what ships next.
Automatically loads the correct FFB profile when you change car or track. No more manual profile hunting — the app detects your combo and applies the right tune instantly.
Direct pedal input via HID with haptic take-over. Supports SC Link, HID Direct, DirectInput, and keyboard inputs. Lock-free 250 Hz read thread with independent 60 Hz haptic output.
Live telemetry overlay for OBS streams — speed, gear, RPM, force output, lap time, mini track map, and scrolling FFB waveform. Fully configurable opacity and layout.
No more manual dropdown selection. The app detects your running sim via process name and auto-switches the FFB pipeline. Works with EVO, RaceRoom, AC, LMU, and ACC.
Bind a hotkey to flip between two profile slots mid-lap. Dial in two different feels and compare them instantly without navigating menus. The #1 tuner workflow tool.
Annotate your profiles with notes and tags so you remember why you tuned a certain way. Search and filter by tag for quick access across your growing profile library.
Add notes to snapshots marking exactly what you felt at that moment. Organise, search, and review your tuning history with context preserved alongside telemetry data.
On-screen peak force / clipping warning overlay. Know exactly when your FFB is clipping and adjust gains with confidence. Essential for maximizing dynamic range without distortion.
Priorities shift with community feedback. Join our Discord to vote on what ships next.
Join DiscordDirect integration with vendor SDKs for features beyond basic DirectInput — FullForce, LED protocols, torque caps, haptic test, and more.
Direct ButtKicker HF8 support via the ForceFeel SDK. Feel the road through your seat with 8 precision motor zones and 5 telemetry-driven sources.
A modern dark UI inspired by GitHub design language, built with WPF and Material Design. Click any screenshot to view full size.
Free and open source. Download the latest release, connect your wheel, select your game, and start driving in under a minute.
